| Price | RM469.00 |
| Product SKU | JCD376 |
| Brand | J5 Create |
| Reward Points | 469 |
| Points Needed | 11725 |
| Availability | In Stock |
| Quantity |
|
- Dual HDMI/VGA individual display output
- Supports VGA 1920 x 1200 @ 60 Hz
- Supports HMDI 4K @ 30 Hz
- USB 3.1 Type-C port x 2
- Quickly add Gigabit Ethernet port

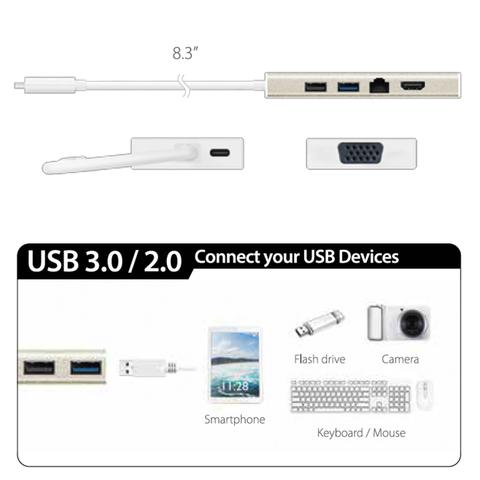

The JCD376 USB 3.1 Type-C Mini Dock provides extra connectivity for your computer. These pocket-sized multi- adapters allow you to add an additional USB 3.1/3.0/2.0 computer peripheral, HDMI/VGA monitor or gigabit Ethernet through your USB port. USB type–C is the new standard for connecting PCs and laptops and will eventually replace all current USB cables and connectors.
This new USB standard can be found on laptops, phones, tablets, etc. The USB type–C has a slim and reversible design, so there is no wrong way to plug it in. USB type–C offers greater power delivery and faster data transfer rates of up to 10 Gbps.
PRODUCT SPECIFICATIONS
|
Interface |
||
|
Host Interface |
USB 3.0 Type-C male Type-C Connector |
|
|
Video Interface |
• HDMI Female Connector x 1 • VGA-DB 15 pin Female Connector x 1 |
|
|
Type-C Port |
USB Type-C female connector | |
| Ethernet Port | RJ-45 female connector(gigabit Ethernet) | |
| USB Port | • USB 3.1 type-A female connector x 1 • USB 2.0 type-A female connector x 1 |
|
|
Power |
||
|
Power Mode |
Bus-powered or self-powered | |
|
Function |
||
|
HDMI |
Display resolution: 4K @ 30 Hz |
|
|
VGA |
Display resolution: 1920 x 1200 @ 60 Hz |
|
|
Type-C |
Upstream & downstream: charging, power delivery 2.0 and data transfer |
|
|
USB |
• USB 3.1 Gen1 5 Gbps • USB 2.0 480 Mbps |
|
|
Ethernet |
Transfer rate: 1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex) IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab,IEEE 802.3x Modes:
|
|
| Physical Specifications | ||
|
Dimensions |
Main body: 2.1 (W) x 4.5 (H) x 0.6 (D) inch 5.33 (W) x 11.5 (H) x 1.52 (D) cm Cable length: 8.3 inch (21 cm) |
|
|
Weight |
Approximately 0.2 lbs (0.095 kg ) (including cable) | |
SYSTEM REQUIREMENTS
- Available USB type-C port (USB 3.1 is recommended)
- Available DisplayPort alt mode over USB type-C port
- Available USB power delivery 2.0 over USB type-C to support upstream charging
- HDMI: DisplayPort v1.2 required on graphics card or video source to support 4K @ 30 Hz resolution
- VGA: DisplayPort v1.1a required on graphics card to support 1920 x 1200 @ 60 Hz
Note:
- If you are using a high-powered USB device please attach the type-C power adapter to the JCD376 power delivery port to ensure maximum performance
- To ensure files copy completely, do not remove the type-C power adapter while copying files
- JCD376 USB 3.1 type-C fully functional mini dock
- Quick installation guide
